How To

Here you can find how to information for various products.

Anchor Cleat

How to use your Cordall Anchor Cleat:

  • Permanently secure your anchor cleat by nailing or screwing to your chosen object (such as a vineyard post, decking or foundation).
  • Use the anchor cleat to secure your cord to the required length and pull the bungee to the required tension before pulling the bungee into the cleat to secure.

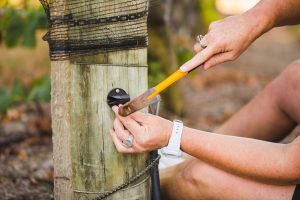

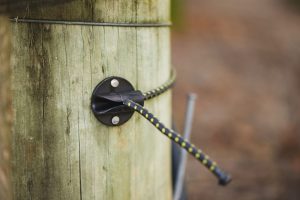

Using the Cordall Anchor Cleat in the vineyard (1)Using the Cordall Anchor Cleat in the vineyard (7)

Adjustable Connector/Extender

How to use your Adjustable Connector/Extender

  1. Slide fitting over cord end to the desired position.
  2. Sharply tug free end at right angles down into tapered slot.
  3. To move fitting to new position, straighten cord and pull out of slot. Reposition and jam cord again.

Adjustable Hook

How to use your Adjustable Hook

  1. Slide fitting over cord end to the desired position.
  2. Sharply tug free end at right angles down into tapered slot.
  3. To move fitting to new position, straighten cord and pull out of slot. Reposition and jam cord again.

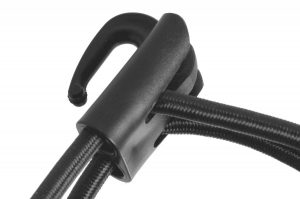

Double Barrel Hook

How to use the Double Barrel Hook

Place both cord ends through the barrel/s and tug excess cord down to lock it into place.  A quick way to create a bungee cord loop and hook the plastic clip onto a metal wire or similar connection point.

Permanent Connector

How to use your Permanent Connector

The Permanent Connector is supplied with two locking blocks (1 for each side).  To insert the locking block:

  • Thread Bungee cord through the tube and hold Bungee with some inward pressure on both sides to form a loop in the Bungee inside the fitting.
  • Pull up the formed loop through the slot in the top.
  • Insert the locking block and pull the cord while pressing down with your thumb. The cord is now set in place.
  • Note –  this will lock into place in a solid and permanent fashion so ensure you have it in the correct location before locking the locking block down.



Creating a fixed loop:

How to use the permanent connector



  • Thread the cord through the tube on one side of the fitting, until enough cord is available to make desired loop and then thread the end through the tube on the other side and fix in place with locking blocks.

Creating a running loop or noose

  • Fix only the end on one side of the fitting with a locking block and leave out the locking block on the return, leaving the loop free to run.

Joining two cords:

  • Attach one cord to the Connector by threading through the tube on one side and locking in place with block. Attach the second cord by repeating on the opposite side.

Permanent Hook

How to use the Permanent Hook

The Permanent Hook is supplied with one locking block.  To insert the locking block:

  • Thread Bungee cord through the tube and hold Bungee with some inward pressure on both sides to form a loop in the Bungee inside the fitting.
  • Pull up the formed loop through the slot in the top.
  • Insert the locking block and pull the cord while pressing down with your thumb. The cord is now set in place.
  • Note –  this will lock into place in a solid and permanent fashion so ensure you have it in the correct location before locking the locking block down.

Tarp Hook

How to Use your Tarp Hook

Insert the large hook end into the metal eyelet of your Tarpaulin or cover.

Place the small hook end over a Bungee, cord or rope (6 – 8mm) or metal wire.  Pull bungee or cord tight to tension and hold the Tarpaulin securely.

Large Hook end has an inner diameter of 15mm to allow free movement in a metal eyelet.
